Buildkite

Connect Buildkite pipelines to BuildButler via the CLI reporter or an org-level webhook.

Send build results, step stages, and test data from Buildkite to BuildButler using the @buildbutler/ci CLI or a zero-config org-level webhook.

Option 1: Org-level webhook

Tip

The org-level webhook (Option 1) is the recommended approach — it requires no per-pipeline changes and works automatically across your entire organization.

Configure one webhook on your Buildkite organization and every build across all pipelines is automatically reported to BuildButler — no per-pipeline pipeline.yml changes needed.

1. Generate an API key

In the BuildButler web app, go to Settings → Add API key. Copy it — you'll need it in the next step.

BuildButler Create API Key

2. Add the webhook

Go to your Buildkite organization → Settings → Notification Services → Add → Webhook
Fill in the form:

Field	Value
Webhook URL	`https://api.buildbutler.dev/webhooks/buildkite?buildkiteToken=YOUR_BUILDKITE_TOKEN`
Self-hosted URL	`http://your-server:3000/webhooks/buildkite?buildkiteToken=YOUR_BUILDKITE_TOKEN`
Token	Your BuildButler API key
Events	Tick build.finished only

Click Add Webhook Notification

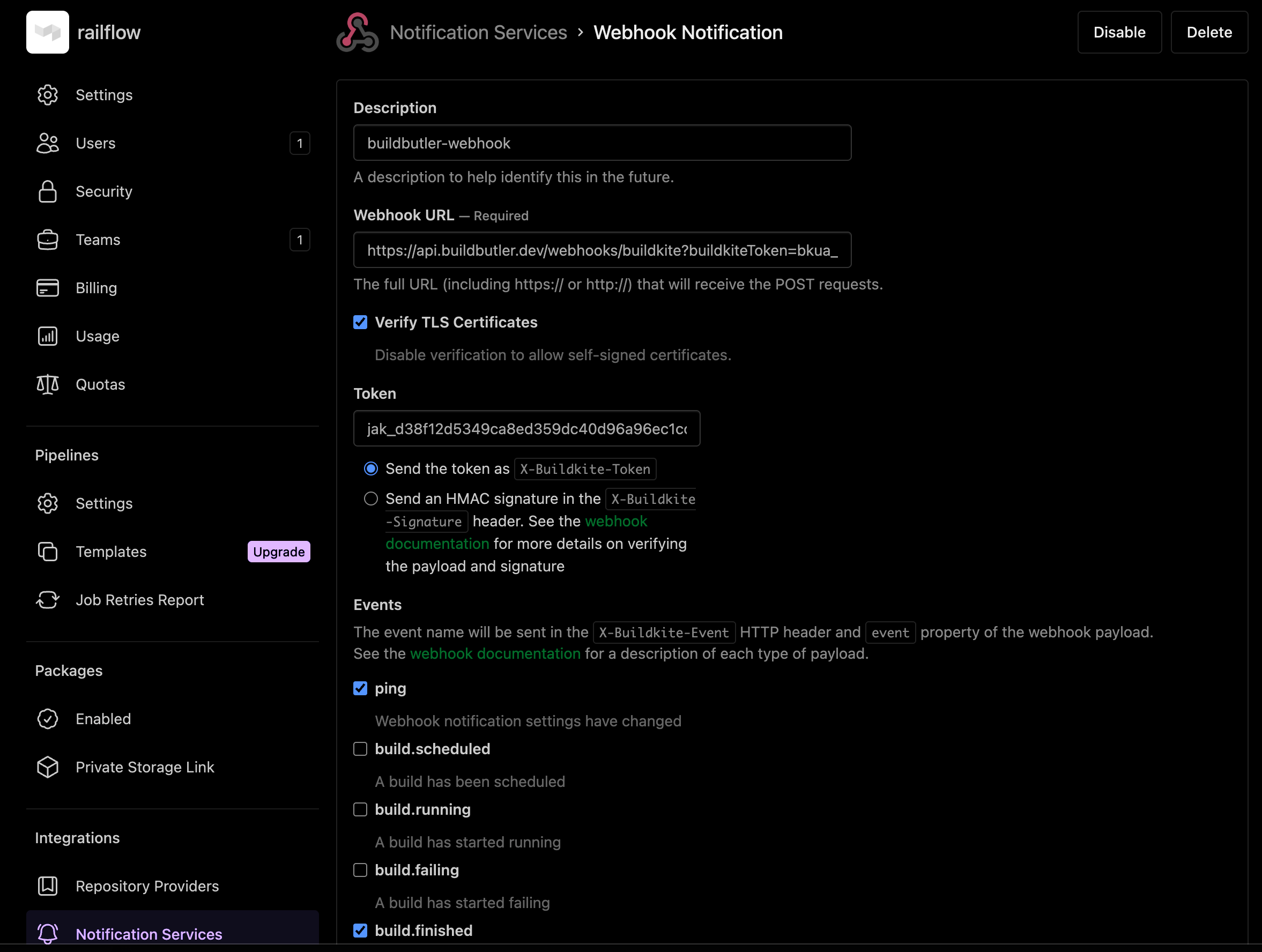

Buildkite Webhook Notification configuration

See Buildkite Access Token for how to generate YOUR_BUILDKITE_TOKEN.

3. How it works

BuildButler authenticates using the Token field (sent as X-Buildkite-Token header)
Only build.finished events are stored — other events are acknowledged and ignored
Build result, branch, and commit are extracted directly from the webhook payload

Option 2: CLI Pipeline Reporter

Tip

If webhooks are not available, add a BuildButler CLI Reporter step in your pipeline to report build results.

If webhooks are not available, add a reporter step in your pipeline that runs after all steps complete.

1. Generate an API key

In the BuildButler web app, go to Settings → Add API key. Copy it — you'll need it in the next step.

BuildButler Create API Key

2. Add the reporter step

# pipeline.yml
- label: "Report to BuildButler"
  command: npx @buildbutler/ci
  if: always()
  env:
    BUILDBUTLER_API_KEY: "your-api-key"
    TEST_RESULTS_GLOB: "**/test-results/**/*.xml"   # optional
    BUILDKITE_API_TOKEN: "your-buildkite-token"     # optional — enables per-step stage details

See Buildkite Access Token for how to generate your-buildkite-token.

Key settings:

if: always() — runs even when earlier steps fail
TEST_RESULTS_GLOB — glob path to JUnit XML test results; remove if you have none
BUILDKITE_API_TOKEN — optional Buildkite API token for fetching per-step stage details

Buildkite Access Token

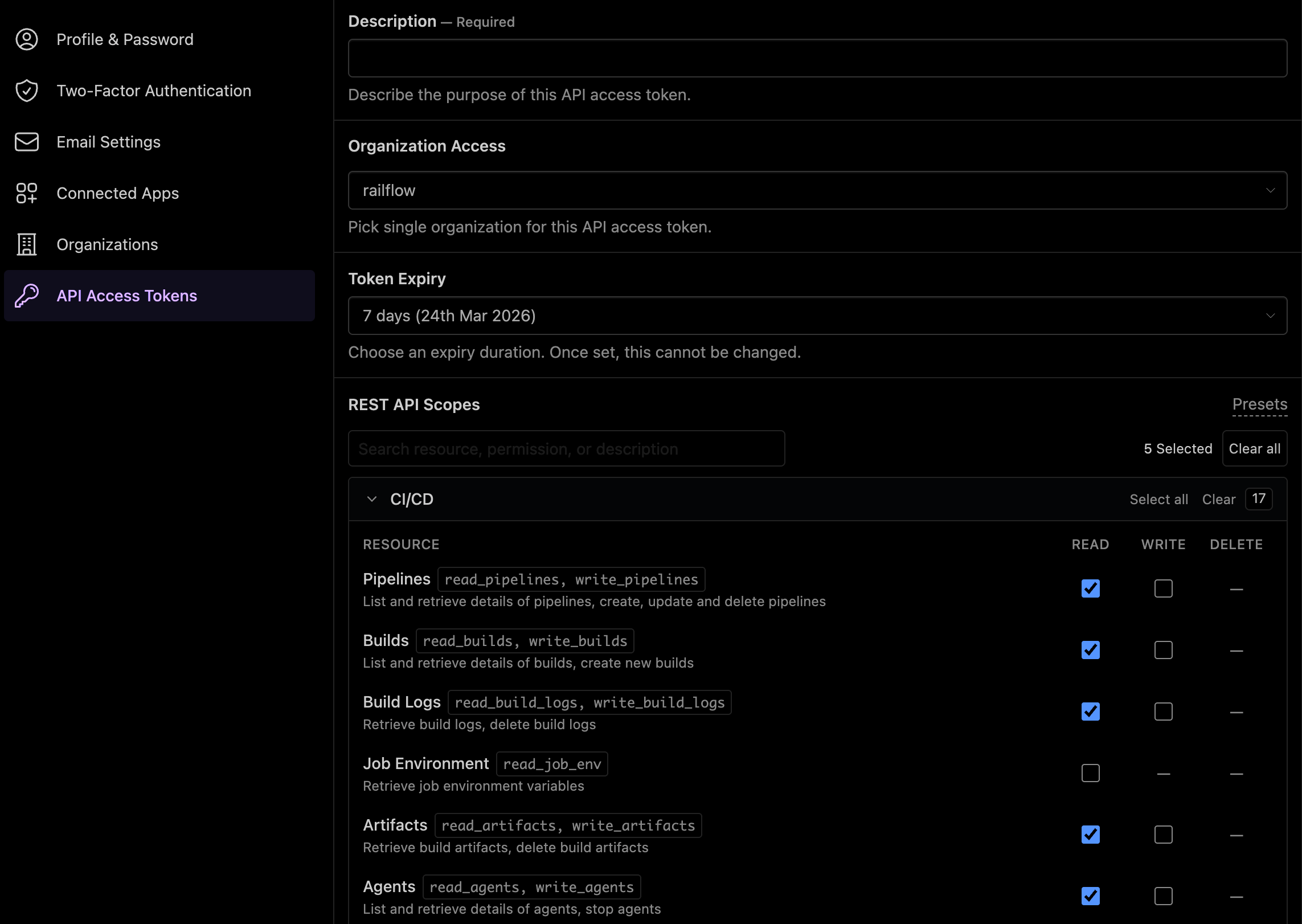

Generate a Buildkite access token with read scopes for: pipelines, builds, build logs, artifacts, and agents.

Buildkite API Access Token scopes

Data mapping

Buildkite	BuildButler
Organization	Server
Pipeline	Job
Build	Build
Step	Pipeline stage
Agent	Agent

Troubleshooting

Symptom	Likely cause	Fix
Builds not appearing	Wrong API key	Verify `BUILDBUTLER_API_KEY` is correct
Webhook returning `401`	Invalid token	Re-copy the API key from BuildButler Settings into the Token field
Webhook returning `skipped`	Wrong event type	Ensure only build.finished is ticked
No stage details	Missing `BUILDKITE_API_TOKEN`	Add a Buildkite API token with Read Builds scope
