Test Case Management

Push test results to external test management platforms automatically when tests are ingested. Configure credentials and mapping rules to control which jobs sync to which projects.

TestRail

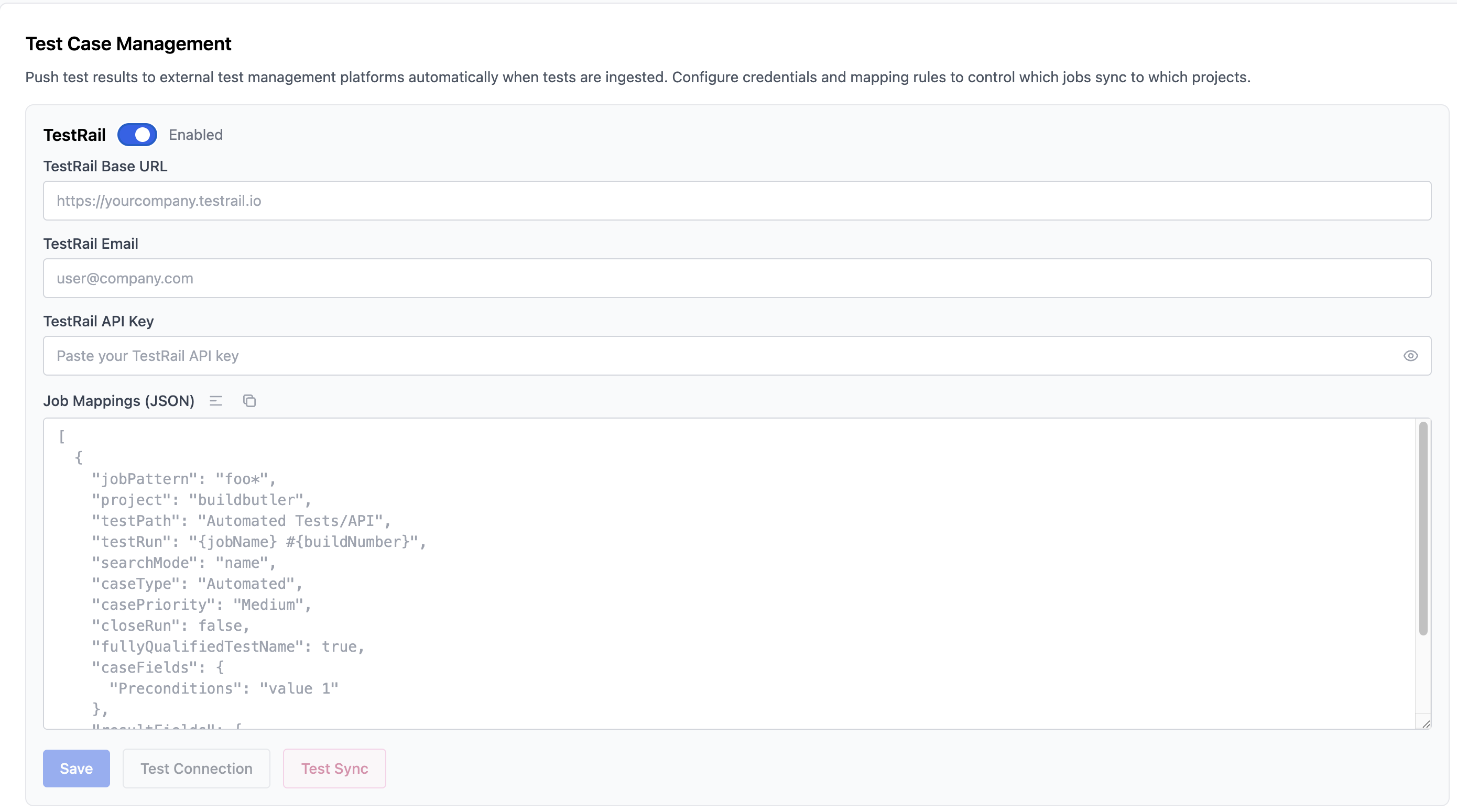

TestRail settings

TestRail Base URL — e.g. https://yourcompany.testrail.io
TestRail Email — your TestRail account email
TestRail API Key — generate from TestRail under My Settings → API Keys
Job Mappings (JSON) — rules mapping job patterns to TestRail projects and test runs

Example mapping:

[
  {
    "jobPattern": "foo*",
    "project": "buildbutler",
    "testPath": "Automated Tests/API",
    "testRun": "{jobName} #{buildNumber}",
    "searchMode": "name",
    "caseType": "Automated",
    "casePriority": "Medium",
    "closeRun": false,
    "fullyQualifiedTestName": true,
    "caseFields": { "Preconditions": "value 1" }
  }
]

ALM (Micro Focus / OpenText)

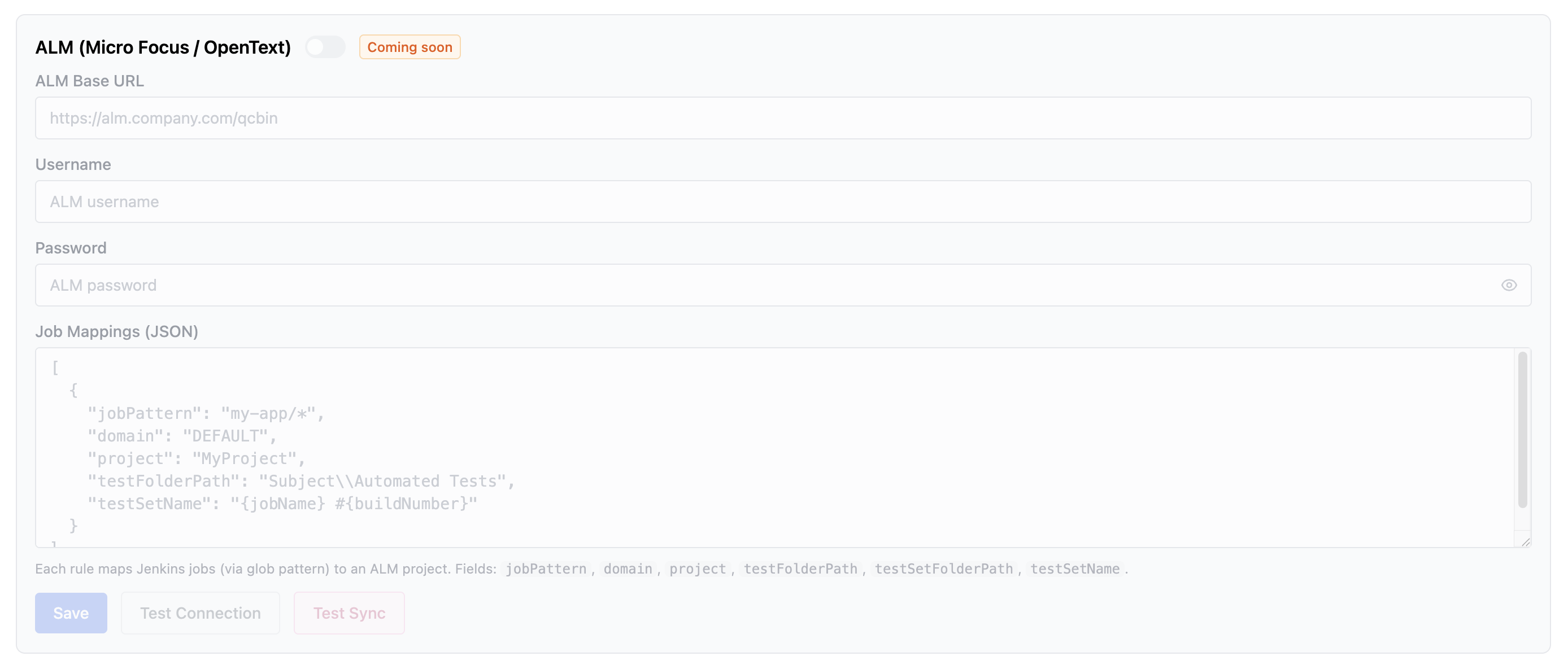

ALM settings

Credentials

ALM Base URL — e.g. https://alm.company.com/qcbin
Username — your ALM username
Password — your ALM password

ALM Field Mappings XML

Bumblebee-compatible XML that maps human-readable labels to internal ALM field names. Labels are referenced in Custom Properties (post-build step) and customProperties (JSON config).

See Jenkins Local → ALM Integration → ALM Field Mappings XML for the full format reference and an example.

Jenkins Local — post-build step

Add Build Butler HP ALM Uploader as a post-build step in any Jenkins job.

Field	Description
Domain	ALM domain (e.g. `DEFAULT`)
Project	ALM project name
Test Plan	Test Plan folder path. Must start with `Subject\` (e.g. `Subject\Automated`)
Test Plan Mode	`find-only` — never writes to Test Plan; tests not found are skipped. `create-minimal` — creates a bare stub (name + folder only) when a test is not found, then creates the run. Existing tests are never modified in either mode.
Test Lab	Test Lab folder path. Must start with `Root\`. Supports `{jobName}`, `{buildNumber}`, `{branch}`.
Test Set	Test set name. Supports template variables. Leave blank to use `{jobName} #{buildNumber}`.
Format	Test result format: `junit`, `testng`, `trx`, `allure`, `cucumber`, `robot`
Result File Pattern	Ant-style glob for result files (e.g. `*/target/surefire-reports/.xml`)
Custom Properties	Comma-separated `label=value` pairs applied to test entities. Labels resolved via ALM Field Mappings XML above.
Fail build if upload unsuccessful	Mark the build as failed if the ALM upload fails or no test IDs are matched

HP ALM Auto Defect Management

Field	Description
Defect Create Policy	`--` disabled · `Create` create/update defects for failing tests · `Reopen` create or reopen defects for failing tests
Create Status	Status assigned to a newly created defect (e.g. `New`)
Create Defect Mappings	Fields set on a newly created defect. One per line: `label=value`
Reopen Status	Status assigned when reopening a defect (effective only when Create Policy is `Reopen`)
Reopen Defect Mappings	Fields set on a reopened defect. One per line: `label=value`
Severity	Value for the ALM Severity field (e.g. `2-Medium`)
Defect Resolve Policy	`--` disabled · `Close` close open defects when the corresponding test passes
Resolve Status	Status assigned when closing a defect (e.g. `Closed`)
Resolve Defect Mappings	Fields set on a resolved defect. One per line: `label=value`

Standalone — job mappings JSON

For the BuildButler Cloud or Standalone server, configure rules as a JSON array:

[
  {
    "jobPattern": "my-app/*",
    "domain": "DEFAULT",
    "project": "MyProject",
    "testPlanDirectory": "Subject\\Automated Tests",
    "testLabDirectory": "Root\\Automated\\{jobName}",
    "testSet": "{jobName} #{buildNumber}",
    "customProperties": "Test Environment=Staging, Test User 1=admin"
  }
]

Fields: jobPattern, domain, project, testPlanDirectory, testLabDirectory, testSet, customProperties. Template variables {jobName}, {buildNumber}, {branch} are supported in path and name fields.

Xray Coming Soon

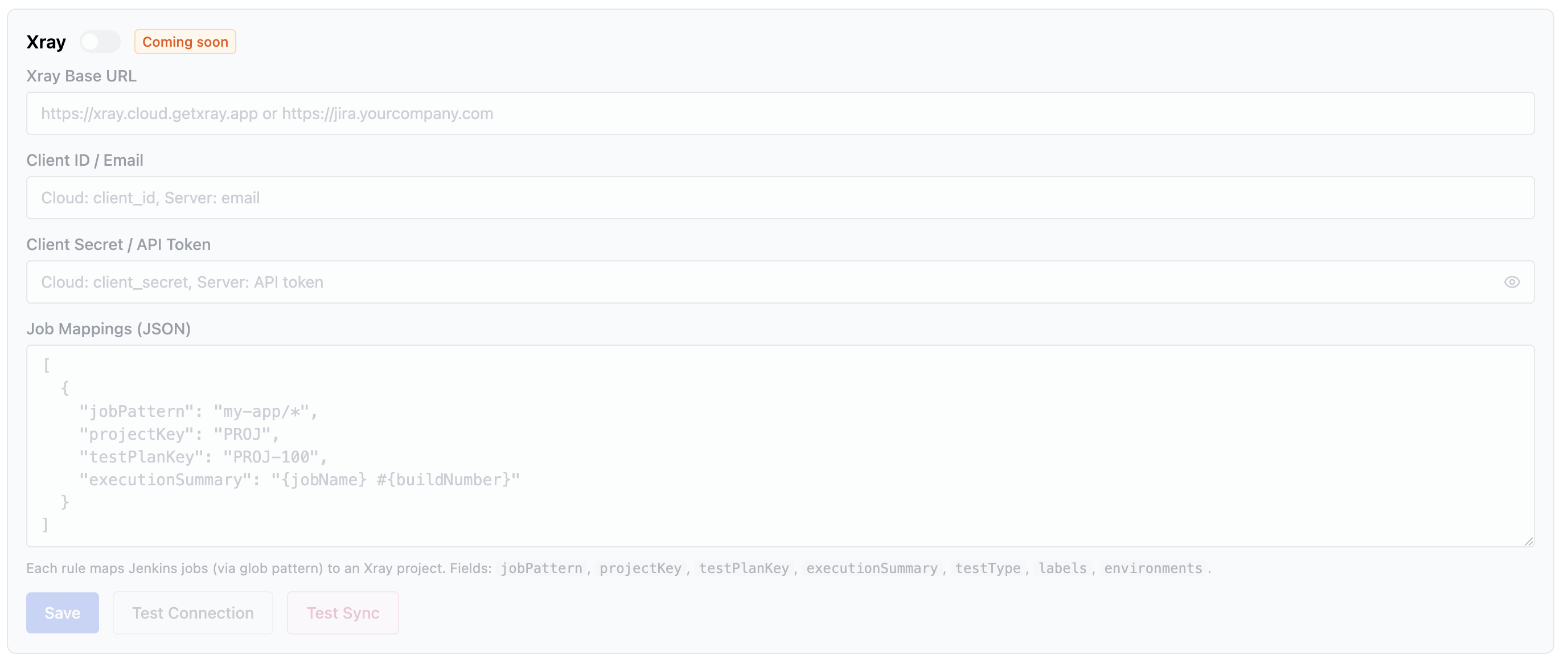

Xray settings

Xray Base URL — https://xray.cloud.getxray.app (Cloud) or your Jira URL (Server)
Client ID / Email — Cloud: client ID, Server: email
Client Secret / API Token — Cloud: client secret, Server: API token
Job Mappings (JSON) — rules mapping job patterns to Xray projects

Example mapping:

[
  {
    "jobPattern": "my-app/*",
    "projectKey": "PROJ",
    "testPlanKey": "PROJ-100",
    "executionSummary": "{jobName} #{buildNumber}"
  }
]

Fields: jobPattern, projectKey, testPlanKey, executionSummary, testType, labels, environments.

Zephyr Scale Coming Soon

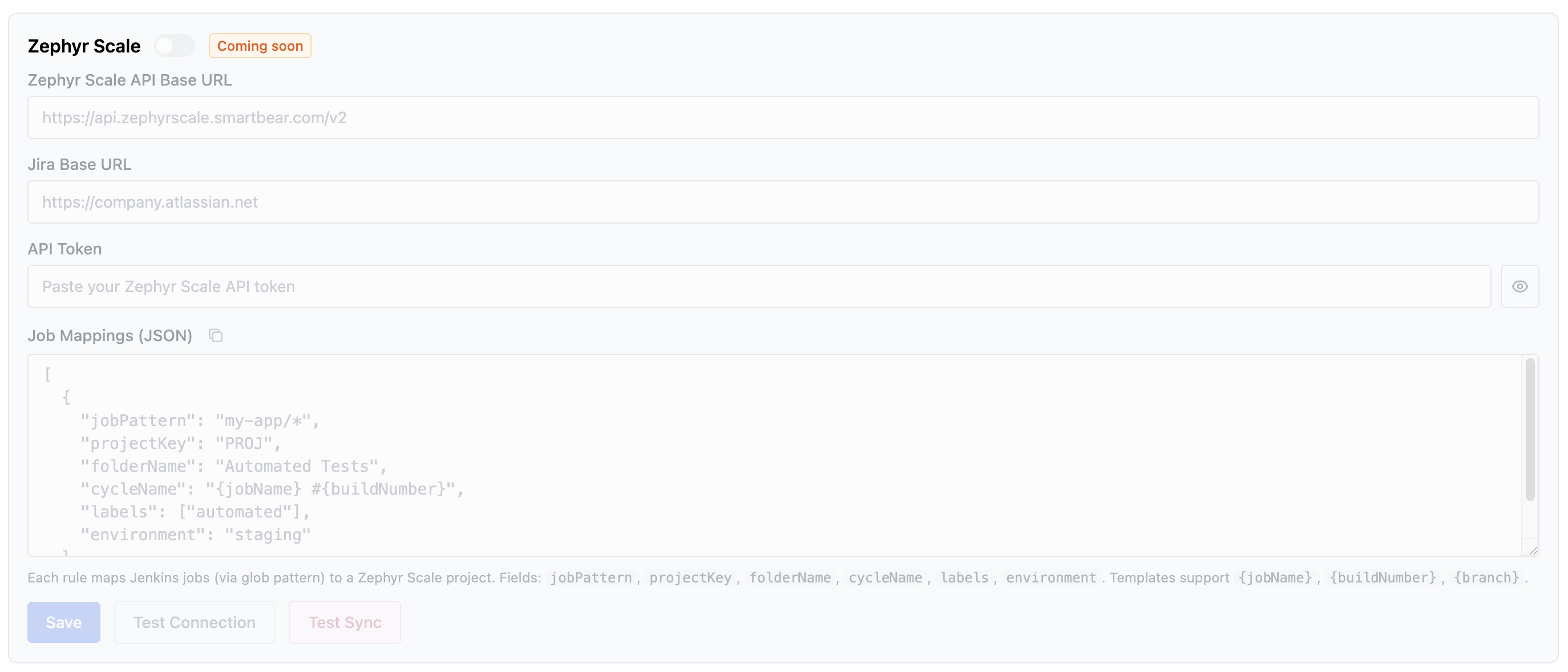

Zephyr Scale settings

Zephyr Scale API Base URL — e.g. https://api.zephyrscale.smartbear.com/v2
Jira Base URL — e.g. https://company.atlassian.net
API Token — your Zephyr Scale API token
Job Mappings (JSON) — rules mapping job patterns to Zephyr Scale projects

Example mapping:

[
  {
    "jobPattern": "my-app/*",
    "projectKey": "PROJ",
    "folderName": "Automated Tests",
    "cycleName": "{jobName} #{buildNumber}",
    "labels": ["automated"],
    "environment": "staging"
  }
]

Fields: jobPattern, projectKey, folderName, cycleName, labels, environment. Templates support {jobName}, {buildNumber}, {branch}.
